P14218 forged link chains,P101.6,P200

forged link chain provides an excellent solution for the rigors of heavy duty conveying systems such as cement clinker or boiler ash handling. The low carbon, high strength base material used to manufacture these forged chains is strong and ductile to combat shock loads, and heat treated to control abrasion.

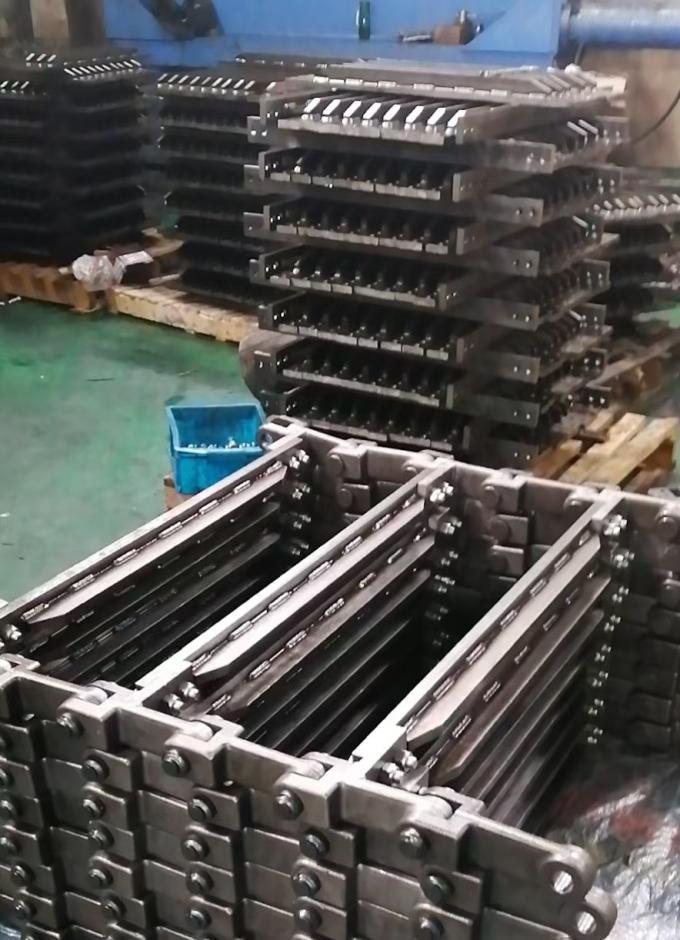

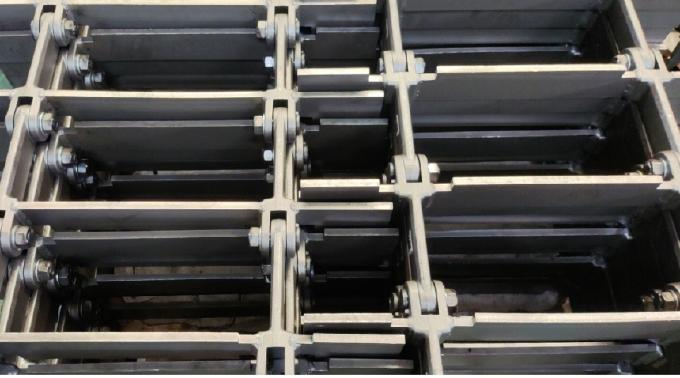

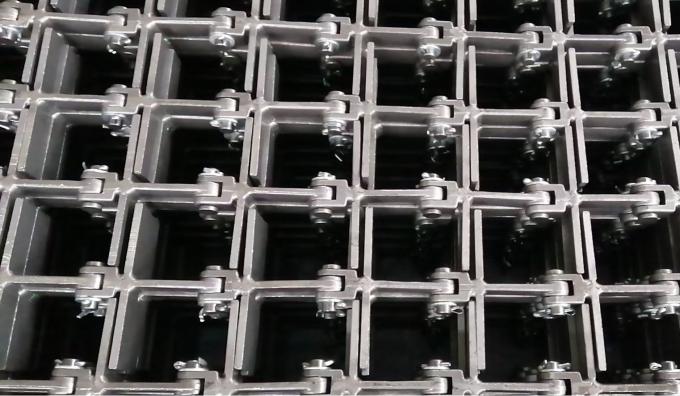

     Die forging scraper chain is a type of chain manufactured through die forging technology, mainly used for buried scraper conveyors, suitable for industries such as grain machinery, mining machinery, steel mills, and power plants. The forging scraper chain is composed of different combinations of scraper chain links or traction chain links. The chain links are forged products, and the pin shaft is generally treated with alloy steel integral heat treatment or surface high-frequency treatment to improve the surface hardness of the pin shaft
1.Structural characteristics
The main structure of forging scraper chain includes chain rod and pin shaft. The chain rod is made by forging or rolling, and then machined. The chain rod is divided into three parts: the large head, the small head, and the rod body. The surface is treated with low-carbon alloy steel carburizing, which has high surface wear resistance and excellent comprehensive mechanical properties
2.Performance characteristics
High strength: The forging chain has the characteristics of high strength and wear resistance, suitable for heavy-duty working conditions.
Long lifespan: Due to its excellent mechanical properties and wear resistance, the service life of forging chains is relatively long.
Low maintenance: The forging chain has less friction during operation, reducing maintenance requirements
two
3.application area
Die forging scraper chains are widely used in heavy-duty transmission applications such as grain machinery, mining machinery, steel mills, and power plants. Its high strength and long lifespan make it outstanding in these fields
