I. Introduction:

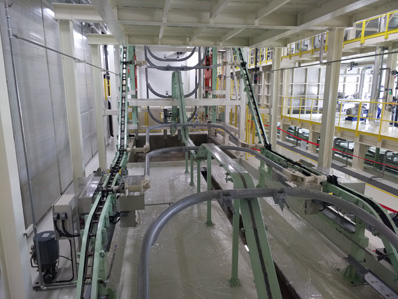

The swinging rod conveyor is another new and advanced body surface treatment and transportation equipment after the general suspension conveyor, cumulative and releasing type suspension conveyor, self-propelled hoist and other transportation systems, which is used in the pretreatment and electrophoretic process of automobile painting line. Its unique and novel structure, has incomparable characteristics of other conveying equipment. It is used for large output and high product quality on the car coating line, with the skid conveying system to form a high degree of automation conveying system.

II. Product features:

1.    It adopts crawler drive to run stable.

The vertical climbing angle of

2. The large vertical climbing angle (45 °) of the soaking tank, the fast speed of entering the tank, and good exhaust shorten the length of pretreatment and electrophoresis equipment, as well as reduce the cost of pretreatment equipment.

3. Traction chain is placed on both sides of the equipment to avoid lubricating oil and impurity oil falling from the chain and track to drop on the vehicle body. It effectively ensures the quality of body electrophoretic paint.

4. The two sides of the track chain are placed to reduce the corrosion of various acid-base corrosive gases on the track and chain, thus prolonging the service life of the track and chain

5. The swing rod conveyor adopts vertical circulation mode and empty swing rod ground return to save conveying space.

6. Using the building block structure to make transportation and installation are more convenient, which accelerate the construction progress and makes maintenance more convenient.

III. Main performance parameters of the product:

 1. Rated load :1200 Kg

 2. Chain pitch: p=250

 3. Speed 1-5 m/min( variable frequency speed)

 4. Motor power 9.2 Kw/7.5Kw

 5. Climbing angle :45 degrees
