Introduction

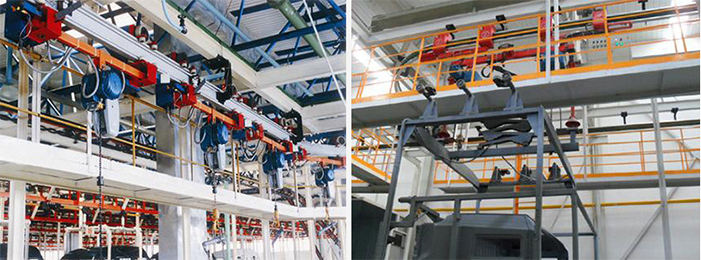

Electrical monorail system, with superior performance, can accomplish the function like horizontal transfer and vertical lifting, etc with program control. It apply to conveying and storage in the fields of general assembly, painting and welding in automobile industry, high speed steel wire manufacturing in steel industry, anode assembly in aluminum industry, and electronics, light product, chemical, textile, food and other industries. It is a kind of ideal automatic equipment in business' production and improvement. OMH has four types of Electrical Monorail System: auto running hoist, double channel steel type, H beam type and aluminum alloy rail type. The EMS of aluminum alloy rail type won the honor of National New Product.

Features

Other than the characteristics of power and free conveyor, EMS also has many other particular characteristics.

1、The 8 urethane wheels for each trolley lead to accurate positioning, smooth operation and low noise.

2、Wide range of production speed to meet a variety of production rates.

3、Assembling with automatic hanger to keep material transferring smoothly.

4、EMS trolley can run with high speed when transferring and with low speed when in working area, saving cost.

5、Can achieve automatic storage and transferring, automatic control, and the operational status can be displayed in a simulated manner.

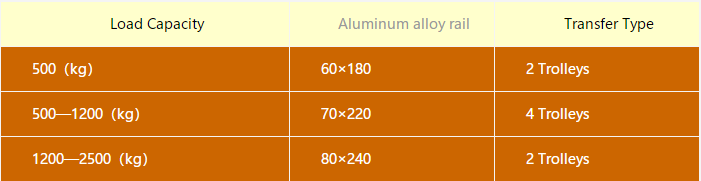

Product Standards and Technical Specifications(Aluminum alloy rail)
