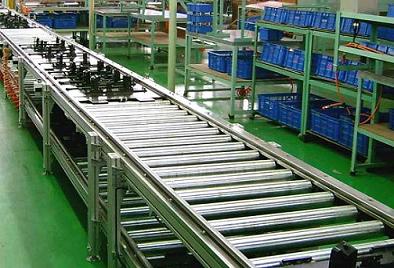

Accumulative roller conveyor

First, the introduction

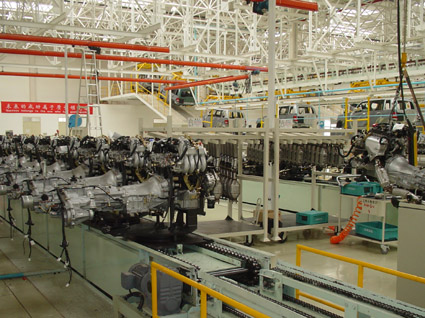

Accumulative roller chain conveyors usually use aluminum alloy profiles as guide rails, with differential chains as the transmission medium, and electric and pneumatic control combined to complete the accumulation function. Widely used in the assembly, debugging and testing of TV sets, monitors, instrumentation, air conditioners, gas appliances, motorcycle parts, auto parts and other products.

Second, product features:

1. Large conveying capacity, which can carry large loads;

2, the conveying speed is accurate and stable, and can ensure synchronous transportation;

3, easy to realize accumulation and transportation, can be used as assembly production line or as material storage and transportation, low noise;

4, can work in a variety of harsh environments (high temperature, dust), reliable performance;

5, made of special aluminum profiles, beautiful structure, low noise, easy to install;

Third, product specifications and technical parameters

1, running speed: V = 0.5 ~ 10m / min;

2, machine height: H = 600 ~ 1500 (mm); machine width: B = 400 ~ 800 (mm);

3, the center distance of the head and tail wheel: L ≤ 30000 (mm);

4, sleeve roller chain pitch: t = 25.4 (mm); differential conveyor chain pitch: P = 38.1 (mm) (all steel or nylon Steel or Nylon);

5, the chain center distance: a = 290 ~ 650 (mm);

The size of this device can be changed according to user requirements.
