I Beam TrolleyOverhead Conveyor I-Beam Trolley for X348 / X458 / X678
| Brand Name: | RELINK |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Place of Origin: | Changzhou, China | Features: | High Strength, Corrosion Resistant, Durable |
| Name: | Overhead Conveyor Trolleys | Keyword: | Die Forged Carriage |
| Application: | High Altitude Conveyor | Material: | Alloy Steel |
| Finish: | Galvanized | Heat Treatment: | Quenched And Tempered |
| Size: | 3 Inches, 4 Inches, 6 Inches | Packaging Details: | Carton Box |
| Highlight: | I Beam Trolley X348, Overhead Conveyor I Beam Trolley, X678 i beam conveyor chain |

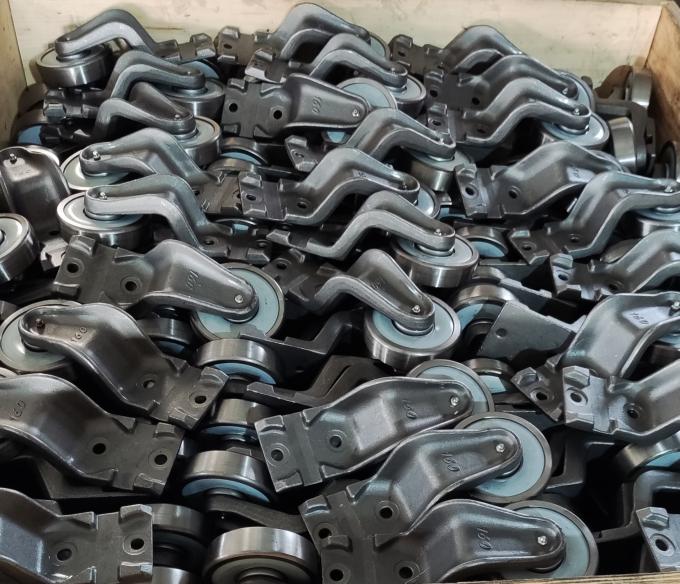

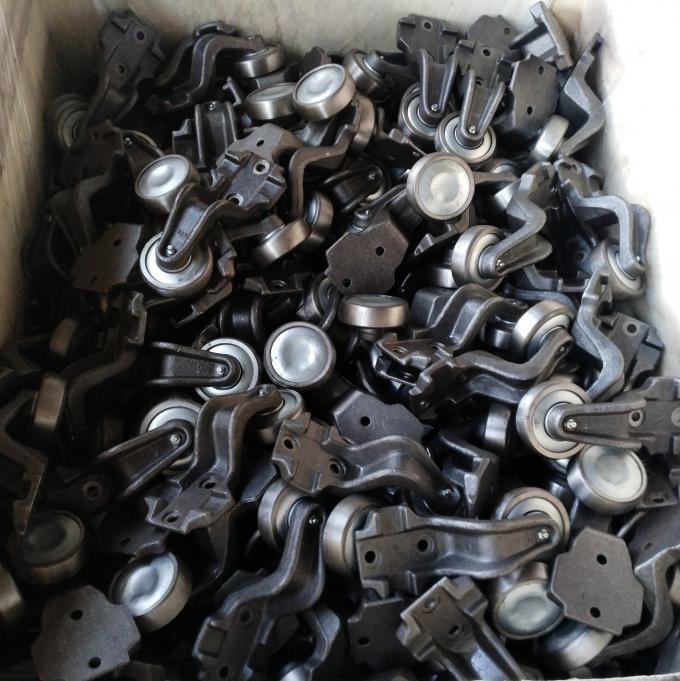

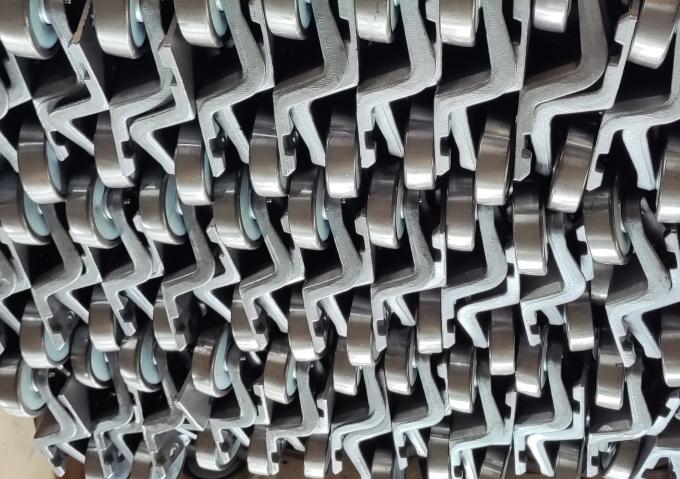

Overhead Conveyor Trolleys | X348 | X458 | X678
Overhead conveyor trolleys are key components in I-beam conveyor systems, designed to support suspended loads and travel smoothly along the conveyor track.
RELINK supplies trolley assemblies compatible with X348, X458, X678 and other forged rivetless conveyor chain systems. The trolley wheels are designed for stable running, reliable load support and long service life in demanding industrial applications.
Depending on the conveyor design and operating conditions, trolley configurations can be customized to match different chain sizes, track dimensions and load requirements.
Available Models:
X348, X458, X678, F100, F160
Main Features:
Designed for overhead I-beam conveyor systems
Compatible with forged rivetless conveyor chains
Heavy-duty construction for industrial applications
Smooth and stable movement along the conveyor track
Replaceable trolley and wheel components
Custom configurations available according to drawings or samples
Application Areas:
Overhead conveyor trolleys are widely used in painting and coating lines, automotive production, assembly lines, material handling systems and other suspended conveyor applications.
RELINK can manufacture trolley assemblies and related conveyor components according to standard specifications, customer drawings or samples.

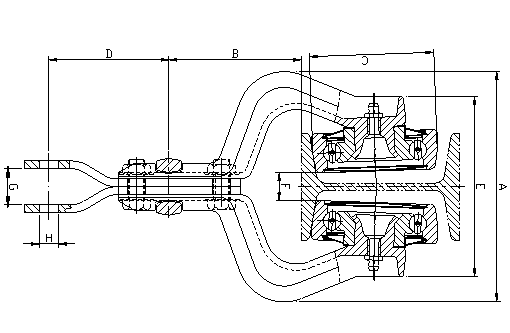

| Model(mm) | 80 | X348 | 100-1 | 100-2 | X458 (Lengthen) | X458 | X678 | 160 | |
| Size | A | 120.5 | 120.5 | 146 | 146 | 146 | 146 | 140 | 182 |
| B | 63.5 | 63.5 | 82 | 105 | 102 | 82 | 88 | 103.8 | |
| C | 60 | 60 | 82 | 82 | 82 | 82 | 82 | 120 | |
| D | 76 | 76 | 76 | 76 | 76 | 76 | -- | 120 | |
| E | 93 | 93 | 114 | 114 | 114 | 114 | 108 | 136 | |
| F | 16.5 | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 21.5 | 26 | |
| G | 14 | 14 | 22 | 22 | 22 | 22 | -- | 24 | |
| H | 11.5 | 11.5 | 12.5 | 12.5 | 12.5 | 12.5 | -- | 20 | |
| Single point lifting | 80kG | 80kG | 250KG | 250KG | 250KG | 250KG | -- | 500KG | |
