Rivetless ChainX458 Drop-Forged Rivetless Conveyor Chain for I-Beam Systems
Brand Name: RELINK
Model: X458
MOQ: 100
Price: negotiable
Delivery Time: 10–15 days
Payment Terms: L/C, T/T, D/P, D/A
| Place of Origin: | Changzhou, China | Material: | Alloy Steel |
| Product_Name: | X458 Conveyor Chain | Chain_Size: | X458 |
| Packaging Details: | Carton Box | Supply Ability: | Annual Output Of 100000 Meters |
| Highlight: | 4" rivetless chain, X458 rivetless chain, Alloy Steel drop forged rivetless chain |

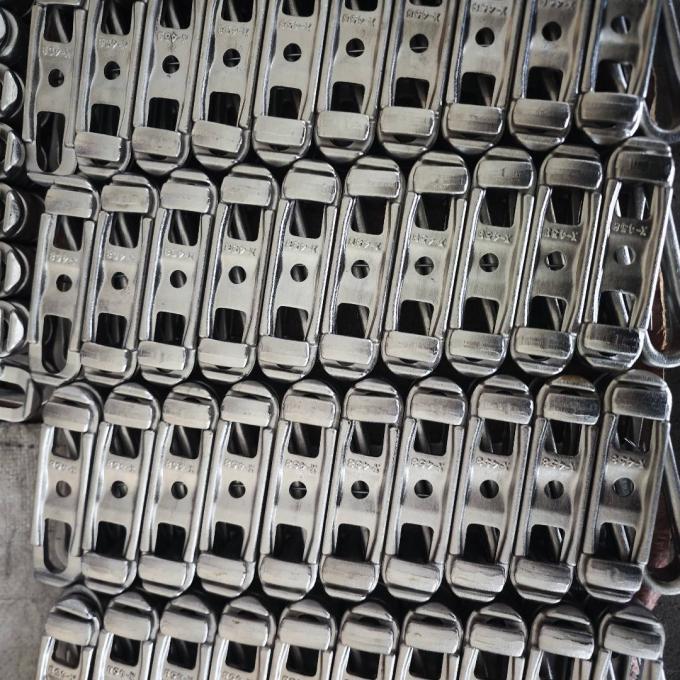

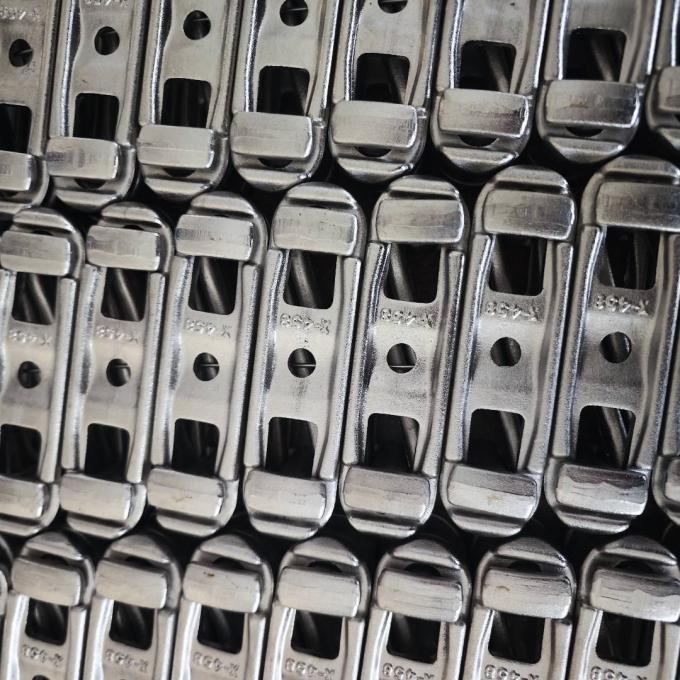

Alloy Steel X458 4" Rivetless Chain For I Beam Systems

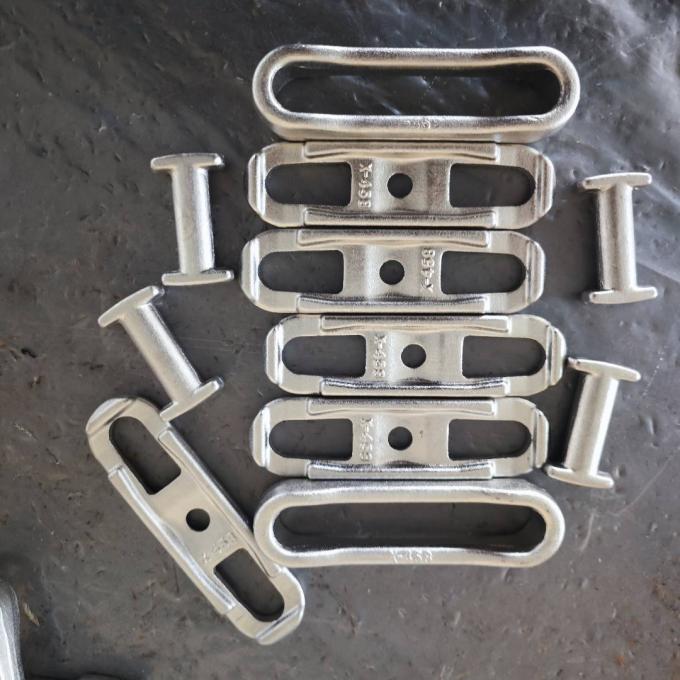

Rivetless forged link chain is a robust simple construction chain which offers both high strength and light weight. The simple design permits easy and fast assembly and dismantling by hand.
Used extensively for overhead trolley conveying but also ideal for twin strand scraper conveying particularly when handling sticky or compacting materials.
Numerous attachments are available to suit a wide variety of conveyor applications.
4" CHAINS FOR I-BEAM SYSTEMS,
RELINK offers chain in multiple sizes, X-348 ,X-458 , X-678,468,698 and 9118. Chain is drop forged, rivetless, and is extremely flexible on both vertical and horizontal curves. chain provides strength and flexi-bility to accommodate all I-Beam conveyor applications.
This type of chain is generally used in high-altitude conveying equipment, mainly in the pre-processing industry, such as electrophoresis, painting, and so on. Has good wear resistance and tensile strength. Easy to repair and replace.
| Chain model | Pitch | Pin diameter | Pin length | Size | min | |||||
| P | d | H(max) | B(max) | c | n | b | m(min) | t | Tensile strength | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
| P2-80-106 | 80 | 12 | 47 | 29.5 | 12.5 | 18.3 | 13.5 | 20 | 6.5 | 98 |
| X348 | 76.6 | 12.5 | 48 | 29.5 | 13 | 18 | 14 | 20 | 9.5 | 98 |
| P2-100-220 | 100 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 7 | 187 |
| X458 | 102.4 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 12 | 187 |
| P2-80-290 | 80 | 18 | 70.5 | 42 | 19 | 32 | 19.5 | 33 | 10 | 250 |
| 468 | 102.4 | 19.1 | 84 | 49 | 29 | 40.9 | 25 | 43.2 | 11 | 302 |
| X678 | 153.2 | 22.1 | 77 | 51.6 | 21.5 | 32 | 24.5 | 33.5 | 16.5 | 320 |
| P2-160-400 | 160 | 24 | 84 | 54 | 20 | 33.8 | 27.5 | 37 | 12 | 360 |
| 698 | 153.2 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 14.5 | 605 |
| 998 | 229.4 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 16 | 605 |
