Detachable ChainFour Inch X458 X348 X678 Forged Detachable Chain Alloy Steel Rivetless
| Brand Name: | RELINK |
| Model Number: | 458 |
| MOQ: | 100 |
| Price: | negotiable |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Place of Origin: | Changzhou, China | Name: | X458 Conveyor Chain |
| Keyword: | Forged Detachable Chain | Material: | Alloy Steel |
| Product_Name: | X458 Conveyor Chain | Chain_Size: | X458 |
| Tensile Strength(KN): | 98-605 | Packaging Details: | Carton Box |
| Supply Ability: | Annual Output Of 100000 Meters | Highlight: | X678 Detachable Chain, Detachable Chain Forged, X458 steel detachable chain links |

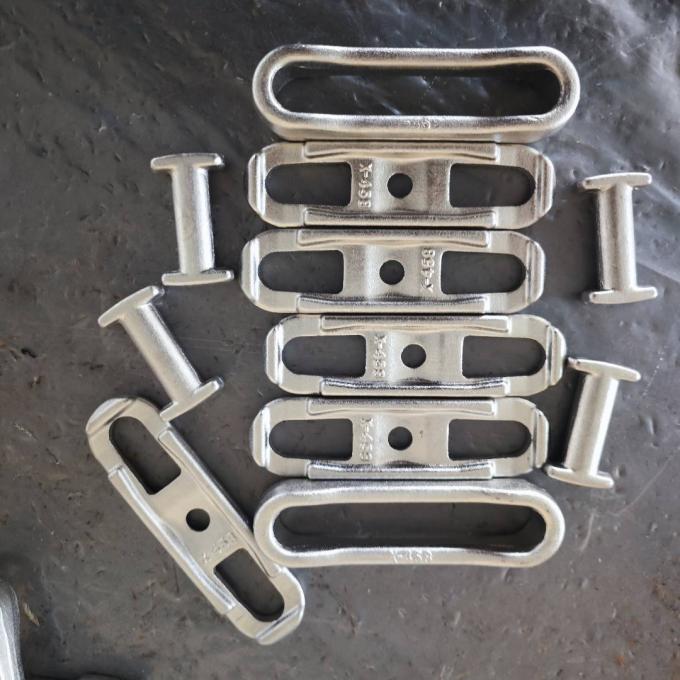

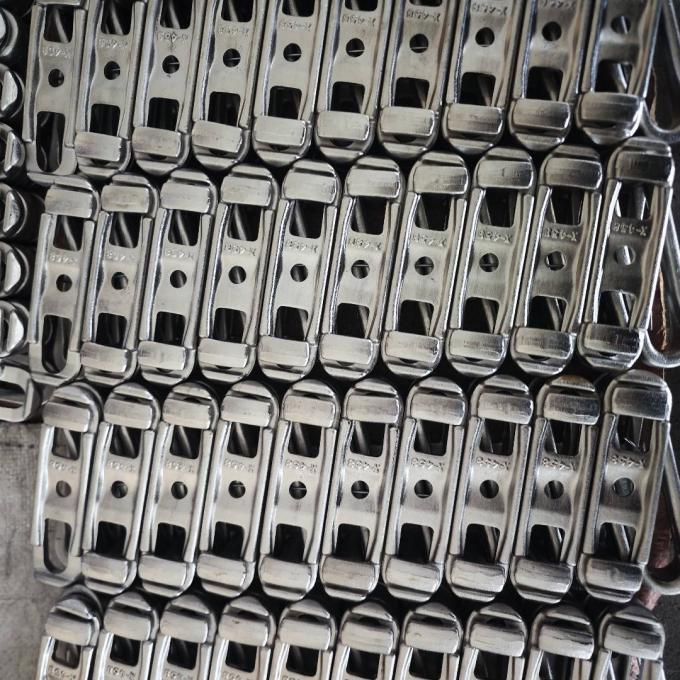

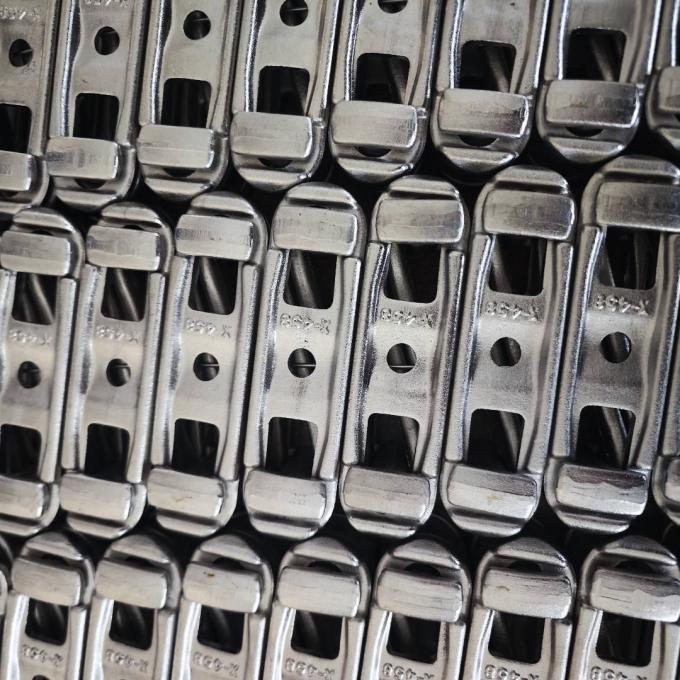

Four Inch X458 X348 X678 Forged Detachable Chain Alloy Steel rivetless
4" CHAINS FOR I-BEAM SYSTEMS,
We are main supplier of Drop Forged Rivetless Chain, drop forged chains, drop forged link, drop forged conveyor chain, conveyor chain, car assembling line chain, forged scraper chain, drop forged folding chain, detachable chain such as X348 chain, X458 chain, X678 chain, X698 chain(698 chain), P142 chain(scraper chain), P142V chain, P142H chain, P200 chain, P102 chain, P260 chain, P250 chain, detachable chain 51 chain, 52 chain, 55 chain, 57 chain, 62 chain, 74 chain, 78 chain and so on. We can produce as per your drawing or sample also. Our products are most competitive and are of high quality. Our trolley are also most competitive in world market.
ZH offers chain in multiple sizes, X-348 ,X-458 , X-678,468,698 and 9118. Chain is drop forged, rivetless, and is extremely flexible on both vertical and horizontal curves. chain provides strength and flexi-bility to accommodate all I-Beam conveyor applications.
This type of chain is generally used in high-altitude conveying equipment, mainly in the pre-processing industry, such as electrophoresis, painting, and so on. Has good wear resistance and tensile strength. Easy to repair and replace.
| Chain model | Pitch | Pin diameter | Pin length | Size | min | |||||
| P | d | H(max) | B(max) | c | n | b | m(min) | t | Tensile strength | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
| P2-80-106 | 80 | 12 | 47 | 29.5 | 12.5 | 18.3 | 13.5 | 20 | 6.5 | 98 |
| X348 | 76.6 | 12.5 | 48 | 29.5 | 13 | 18 | 14 | 20 | 9.5 | 98 |
| P2-100-220 | 100 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 7 | 187 |
| X458 | 102.4 | 16 | 58 | 36.6 | 16 | 25.5 | 18.3 | 27.6 | 12 | 187 |
| P2-80-290 | 80 | 18 | 70.5 | 42 | 19 | 32 | 19.5 | 33 | 10 | 250 |
| 468 | 102.4 | 19.1 | 84 | 49 | 29 | 40.9 | 25 | 43.2 | 11 | 302 |
| X678 | 153.2 | 22.1 | 77 | 51.6 | 21.5 | 32 | 24.5 | 33.5 | 16.5 | 320 |
| P2-160-400 | 160 | 24 | 84 | 54 | 20 | 33.8 | 27.5 | 37 | 12 | 360 |
| 698 | 153.2 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 14.5 | 605 |
| 998 | 229.4 | 28.4 | 95.3 | 68.3 | 25.4 | 39.1 | 30 | 41.7 | 16 | 605 |
